7 Inch LCD Large Screen Grating CNC Digital Readout Display Lathe Control Panel Controller Board Engraving Milling Machine Contr
Widely used in lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines, it is a digital display device that provides display and positioning.
Features:

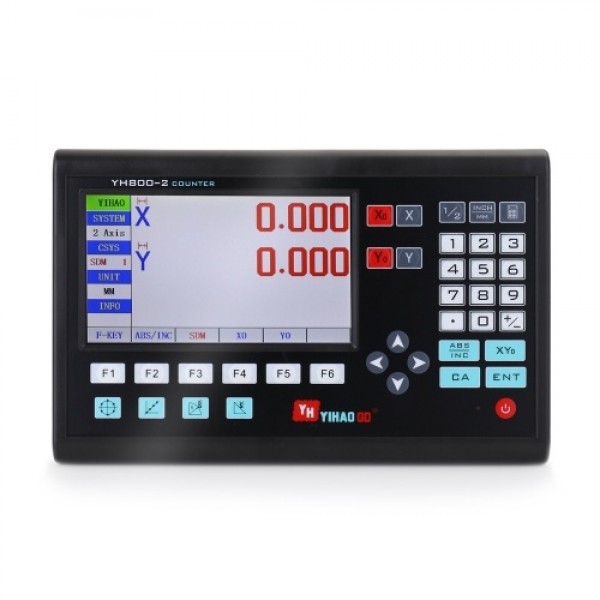

7 inch TFT true color display, the display is more intuitive.
The repeatability of the measureme..
Widely used in lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines, it is a digital display device that provides display and positioning.
Features:
7 inch TFT true color display, the display is more intuitive.
The repeatability of the measurement is more stable.
High accuracy, easy to install and operate, has a long service life.
Comfortable buttons, clear display, more convenient reading data.
Basic operation: power on, zeroing, preset data to designed axis, toggle display unit between mm and inch, mid-point calculation, absolute/incremental/500 groups SDM, clear all SDM datum, lathe function, filter display value, close the screen.
500 groups SDM coordinate: zeroing at the current point, preset datum of SDM coordinate.
Special functions: bolt hole circle, bolt hole line, bolt hole grid, ARC processing, slope processing.
Widely used in lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines.
Specifications:
Material: ABS
Color: black
LCD size: 7 inch TFT

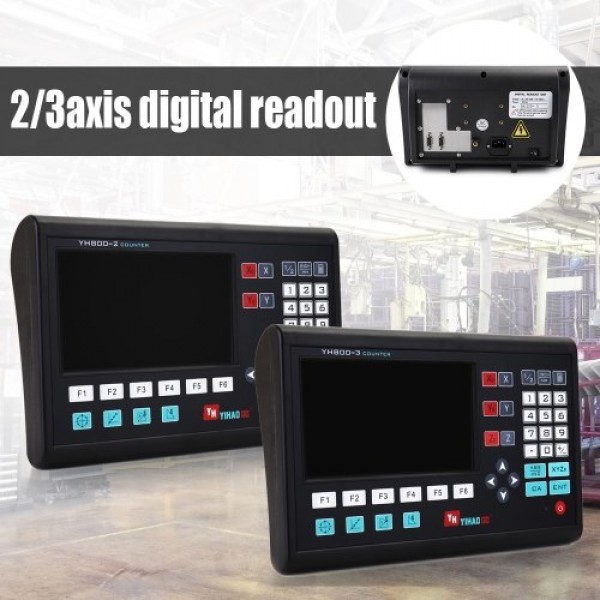

Type: 2 axis, 3 axis (optional)
Power consumption: ＜15W
Operating temperature: 0℃~45℃
Storage temperature: -20℃~40℃
Frequency multiplication factor: 4 times frequency
Operation keyboard: seal and touching independent button

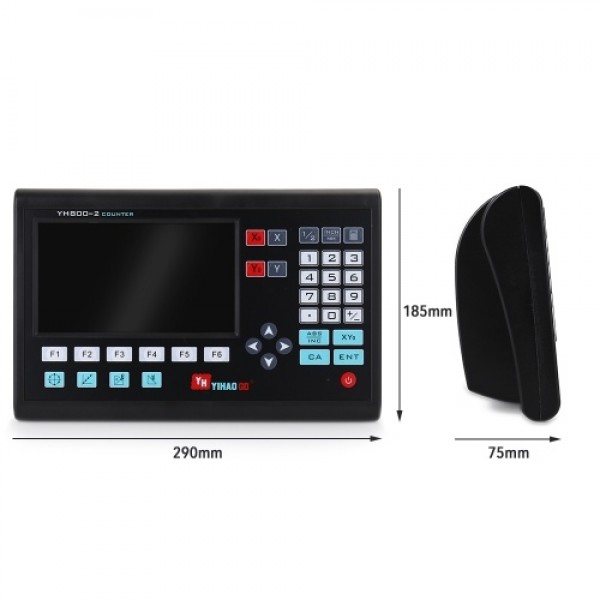

Item size: 290 * 185 * 75mm / 11.4 * 7.3 * 3.0in
Item weight:
2 axis: 1054g / 2.3lb
3 axis: 1061g / 2.3lb
Package size: 350 * 250 * 160mm / 13.8 * 9.8 * 6.3in
Package weight:
2 axis: 2102g / 4.6lb
3 axis: 2105g / 4.6lb
Description of key function: zero selected axis, clear all axes, select axis to operate, inch/metric switch, center finding, ABS/INC switch, numeric key, decimal point, +/- sign, enter, clearing, calculator, function selection key, process holes displayed equally on a circle, process holes displayed equally on a line, simple R cutting function, process a slope, stroll up or down to select, LCD screen swich key.
Package list:
1 * Digital Readout
1 * Plug
1 * Set of Mounting Bracket
1 * User Manual
