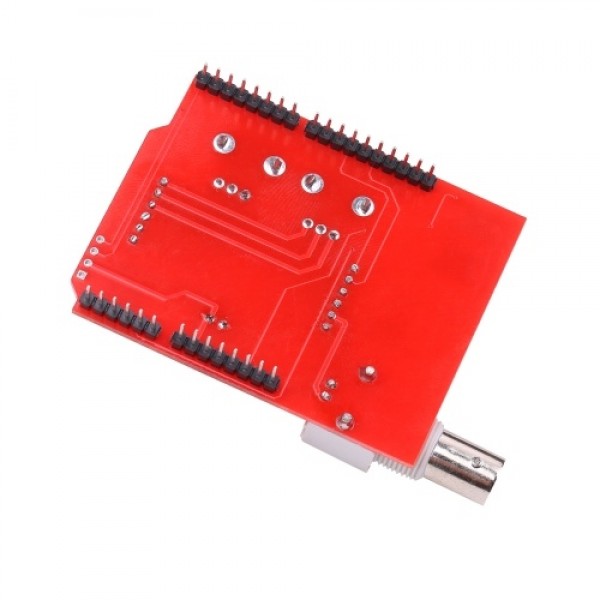

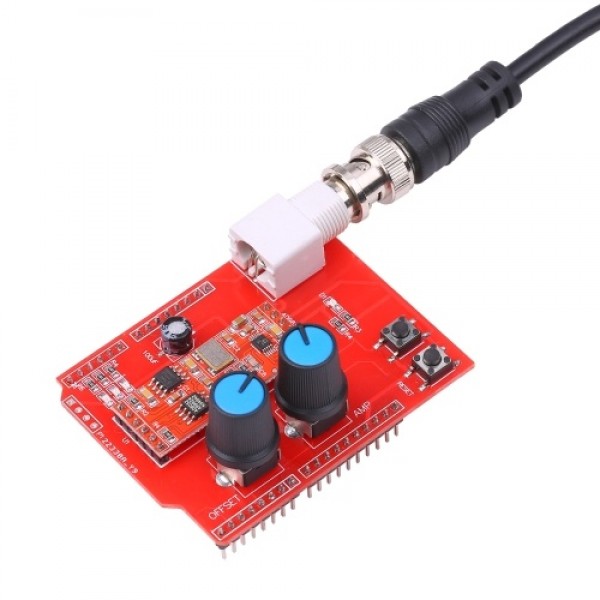

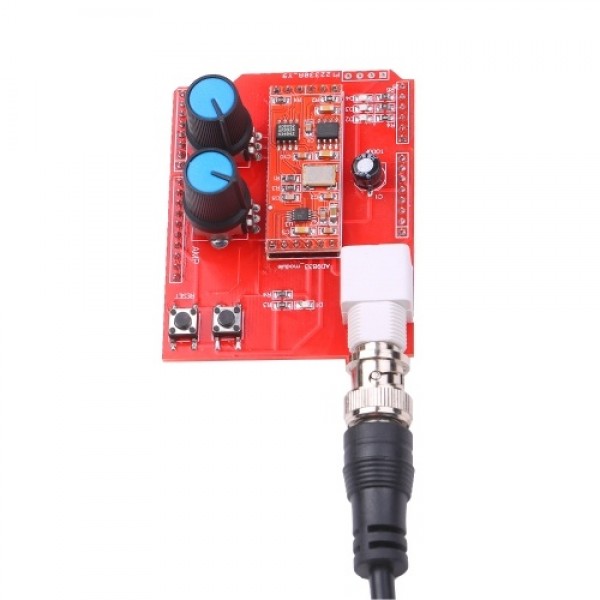

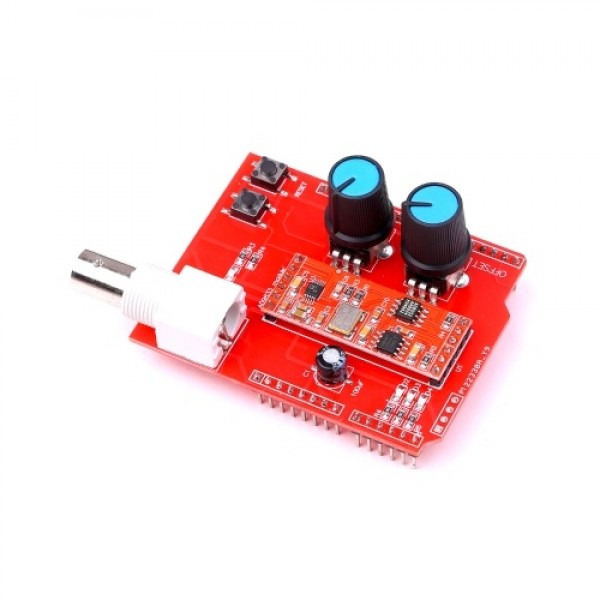

AD9833DDS Signal Generator Arduino Expansion Board 0-12.5MHz Frequency Control Sine/Triangular/Square Output
Features:
5V working voltage, 20mA working current.
Frequency control range 0-12.5MHz (0.1Hz accuracy), sine wave, triangle wave 5MHz waveform distortion is more serious, square wave 1M distortion.
The output waveform: triangular wave, sine wave, and square wave.
Using rail-to-rail op amps continuou..
Features:
5V working voltage, 20mA working current.
Frequency control range 0-12.5MHz (0.1Hz accuracy), sine wave, triangle wave 5MHz waveform distortion is more serious, square wave 1M distortion.
The output waveform: triangular wave, sine wave, and square wave.
Using rail-to-rail op amps continuously adjustable amplitude, adjustment range 0-9VPP.
The offset is adjustable, the adjustment range is 0-5V.
Using arduino UNO R3 with open source program can control the frequency, phase.

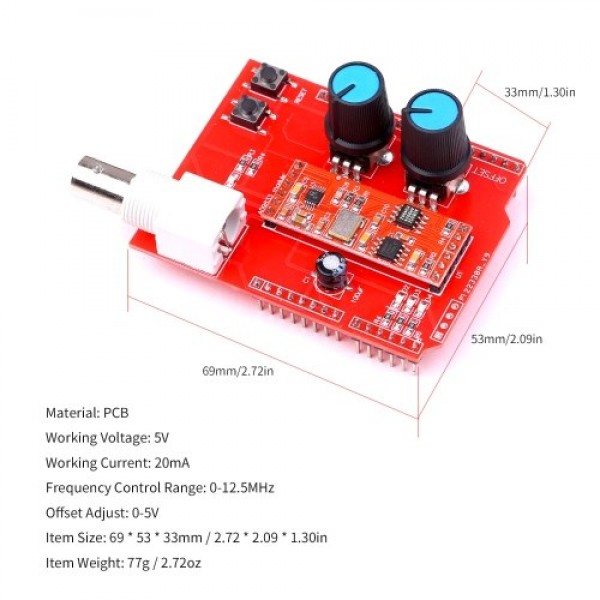

Specifications:
Material: PCB
Working Voltage: 5V
Working Current: 20mA
Frequency Control Range: 0-12.5MHz
Offset Adjust: 0-5V
Item Size: 69 * 53 * 33mm / 2.72 * 2.09 * 1.30in
Item Weight: 77g / 2.72oz
Package Weight: 85g / 3.01oz
Package Size: 14 * 11 * 4cm / 5.51 * 4.33 * 1.57in
Package List:
1 * Signal Generator

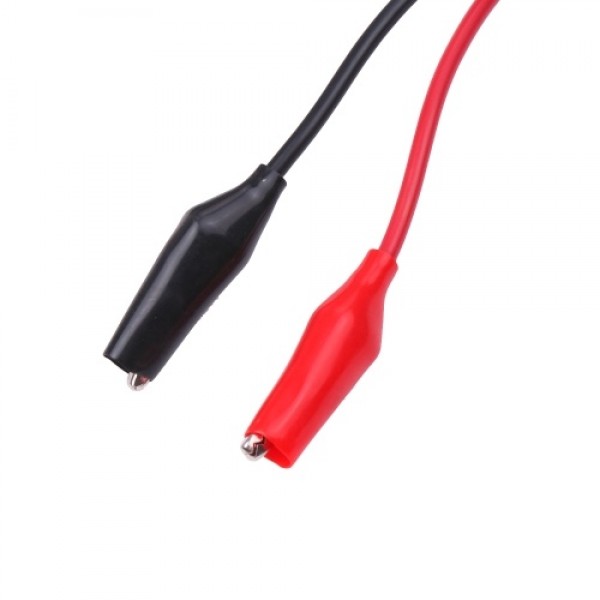

1 * Alligator Clip Cable
1 * Manual (English)
Note:
The Signal Generator will sent in a finished product, not DIY kit.
5V working voltage, 20mA working current.
Frequency control range 0-12.5MHz (0.1Hz accuracy), sine wave, triangle wave 5MHz waveform distortion is more serious, square wave 1M distortion.
The output waveform: triangular wave, sine wave, and square wave.
Using rail-to-rail op amps continuously adjustable amplitude, adjustment range 0-9VPP.
The offset is adjustable, the adjustment range is 0-5V.
Using arduino UNO R3 with open source program can control the frequency, phase.
Specifications:
Material: PCB
Working Voltage: 5V
Working Current: 20mA
Frequency Control Range: 0-12.5MHz
Offset Adjust: 0-5V
Item Size: 69 * 53 * 33mm / 2.72 * 2.09 * 1.30in
Item Weight: 77g / 2.72oz
Package Weight: 85g / 3.01oz
Package Size: 14 * 11 * 4cm / 5.51 * 4.33 * 1.57in
Package List:
1 * Signal Generator
1 * Alligator Clip Cable
1 * Manual (English)
Note:
The Signal Generator will sent in a finished product, not DIY kit.
