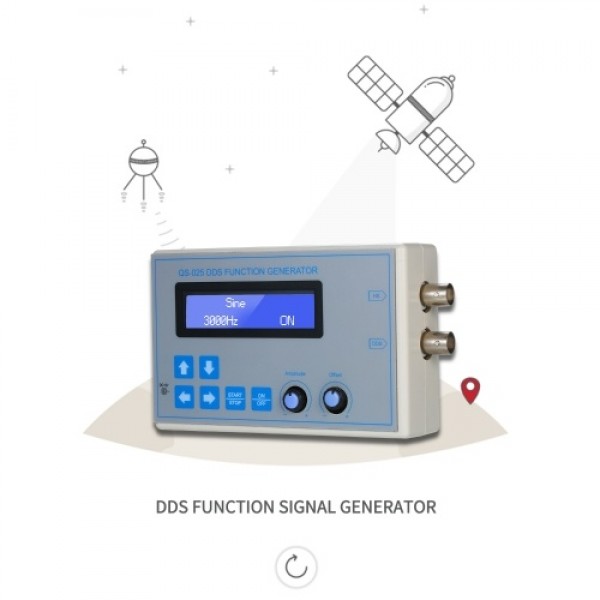

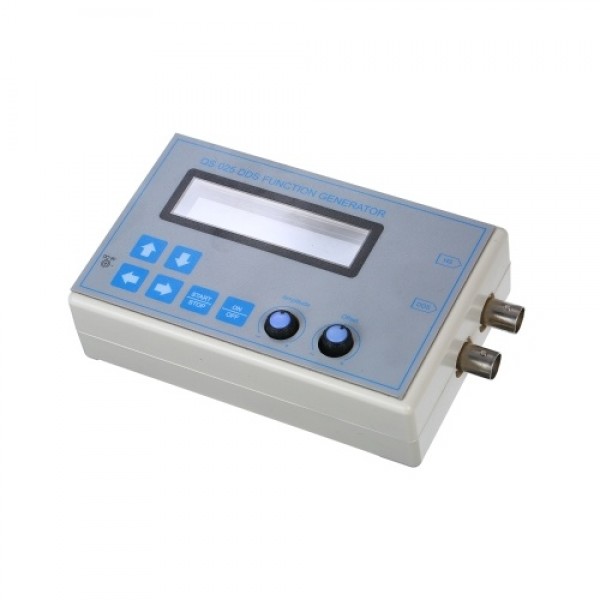

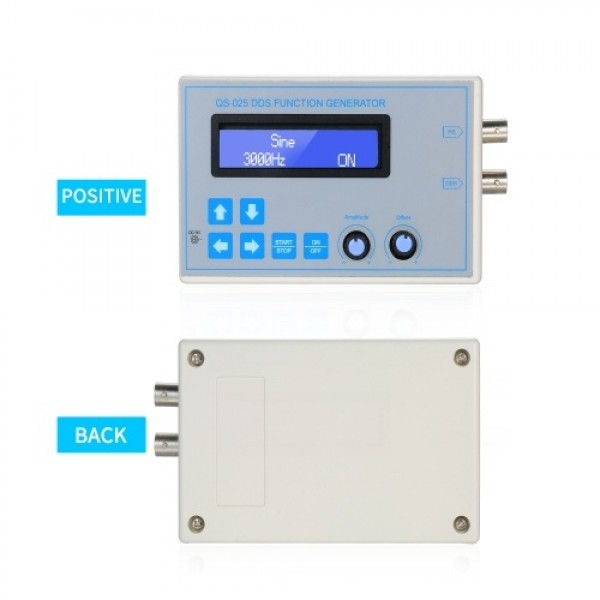

DDS Function Signal Generator Sine Square Triangle Sawtooth Wave Low Frequency LCD Display USB Cable DC9V 1Hz-65534Hz

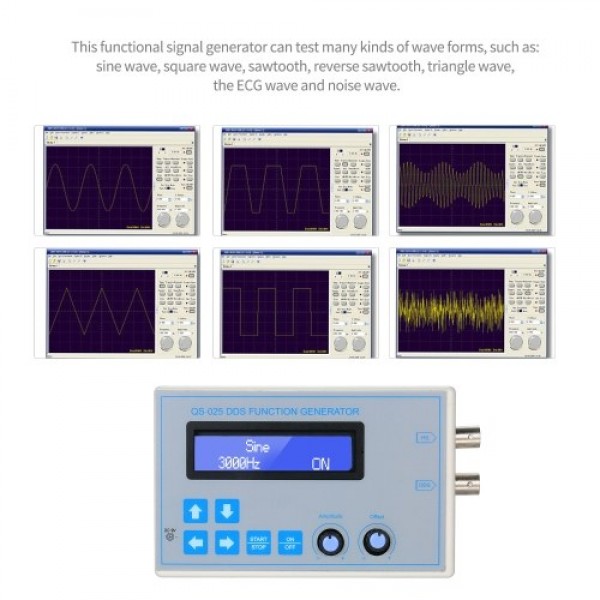

This functional signal generator can test many kinds of wave forms, such as: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
Features:
Portable --- Small size, powered by DC 9V, easy and portable for use.
DDS frequency range --- 1Hz-65534Hz, high-spee..
This functional signal generator can test many kinds of wave forms, such as: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
Features:
Portable --- Small size, powered by DC 9V, easy and portable for use.
DDS frequency range --- 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.

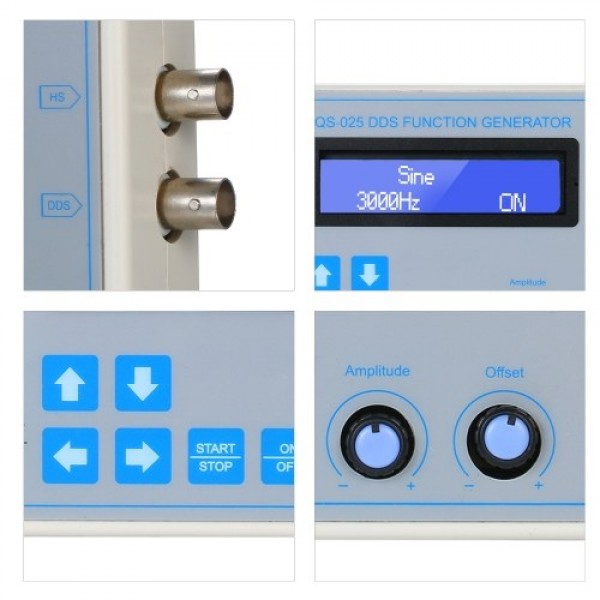

Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
Wide DDS signals --- sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.

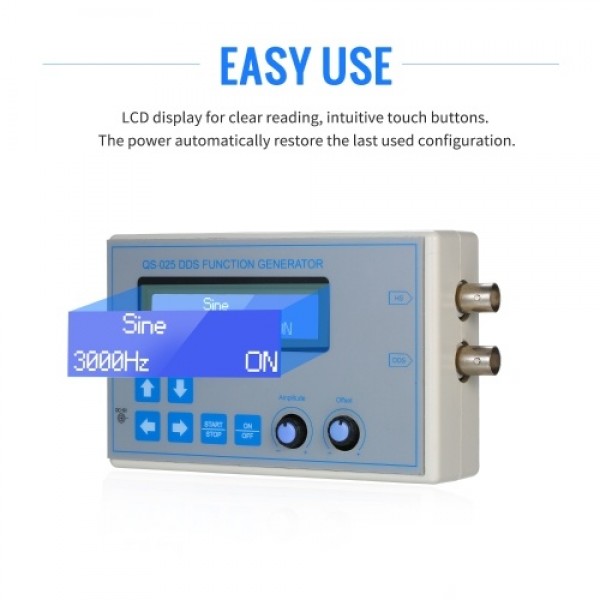

Easy Use --- LCD display for clear reading, intuitive touch buttons. The power automatically restore the last used configuration.

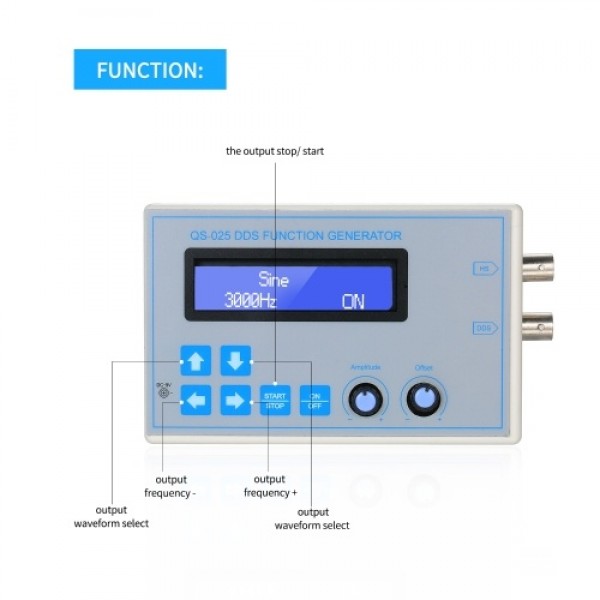

Function:
UP output waveform select
DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / START the output stop / start

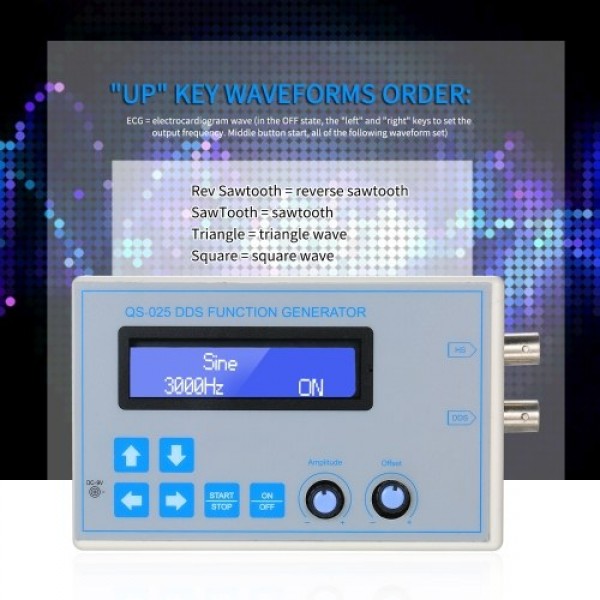

"UP" key waveforms order:
ECG = electrocardiogram wave (in the OFF state, the "left" and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
Rev Sawtooth = reverse sawtooth
SawTooth = sawtooth
Triangle = triangle wave
Square = square wave
Specifications:
Material: ABS
Display: 1602 LCD
Operating Voltage: DC 9V
DDS Frequency Range: 1Hz-65534Hz
Frequency(HS) Output: up to 8MHz
Section into the Value: 1, 10 , 100, 1000, 10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount: 0.5Vpp-14Vpp

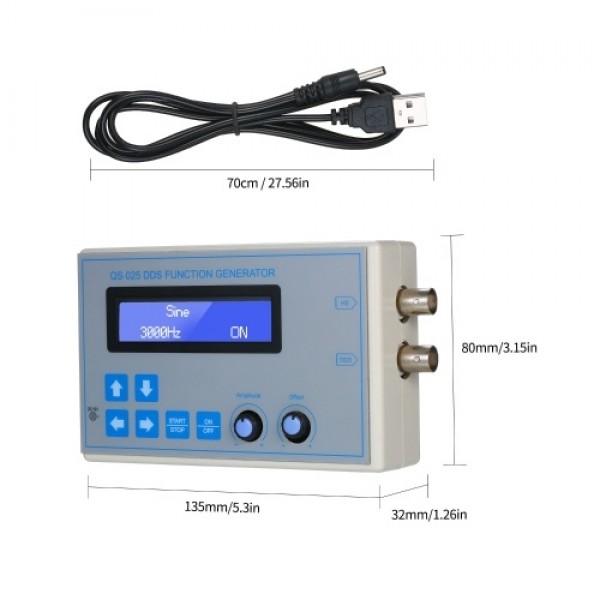

Power Cable Length: Approx. 70cm / 27.56in
Item Size: 135*80*32mm / 5.3*3.15*1.26in
Item Weight: 198g / 6.98oz
Package Weight: 203g / 7.16oz
Package Size: 135*80*32mm / 5.3*3.15*1.26in
Package List:
1 * DDS Function Signal Generator
1 * Power Cable
