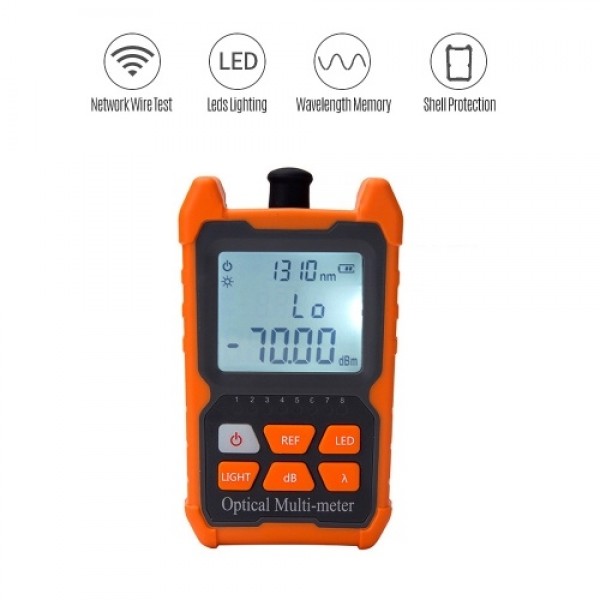

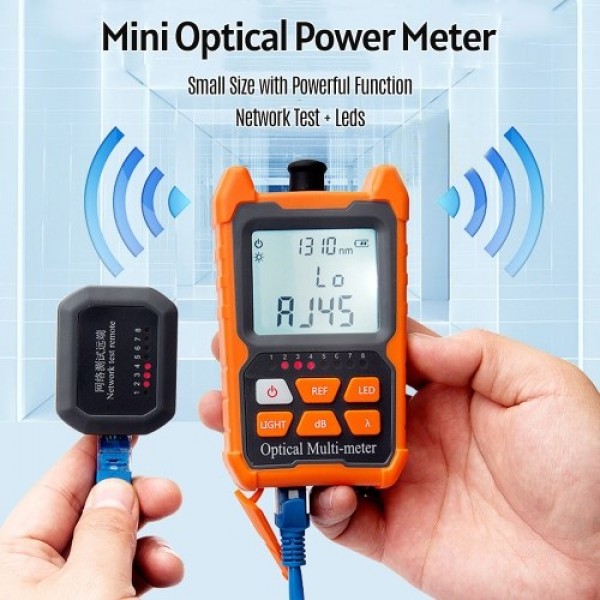

Mini Optical Power-Meter Portable Leds Lighting High Precise Network Fiber Optic Cable Tester Tools
Features:
Can measure 8 standard wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm, test range: -70dBm~+6dBm.

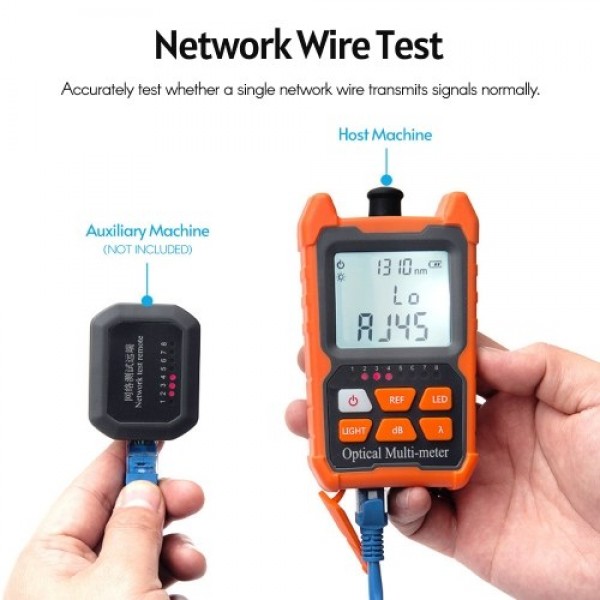

Supports FC/SC/ST universal interface, RJ45 testing, simultaneous disply of linear mW and non-linear index dBm.
Wavelength memory function, can memorize the test wavelength that set for t..
Features:
Can measure 8 standard wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm, test range: -70dBm~+6dBm.
Supports FC/SC/ST universal interface, RJ45 testing, simultaneous disply of linear mW and non-linear index dBm.

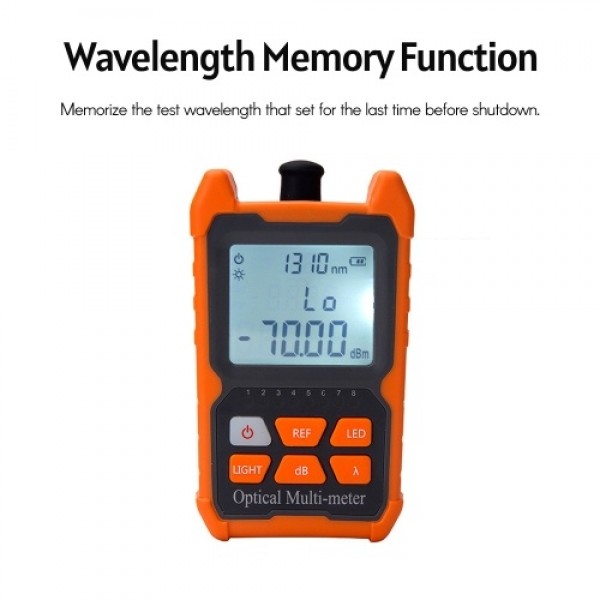

Wavelength memory function, can memorize the test wavelength that set for the last time before shutdown.
Supports backlight function and auto shutdown function.

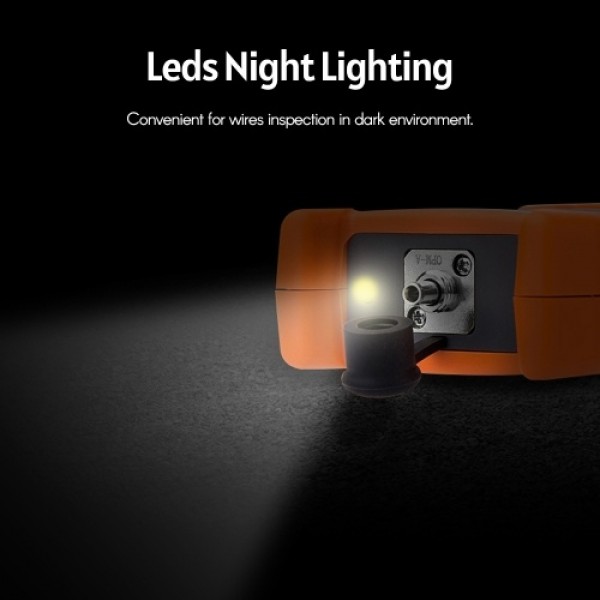

Leds lighting function, convenient for wires inspection in dark environment.

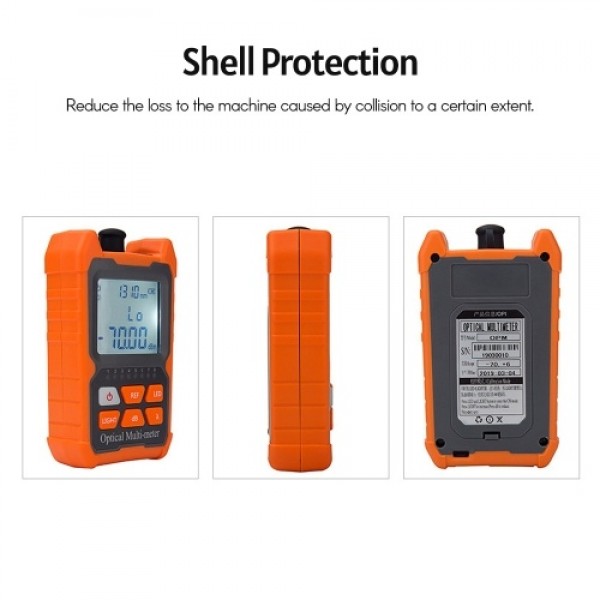

With protective housing, reduce the loss to the machine caused by collision to a certain extent.
Small size, convenient to carry anywhere.
Specifications:
Material: plastics
Color: orange
Standard wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm
Test range: -70dBm~+6dBm
Auto shutdown time: 10mins
Working time: 72h
Power-supply: 2 * AAA-batterys (not included)
Working temperature: -10℃~+60℃
Storage temperature: -30℃~+70℃

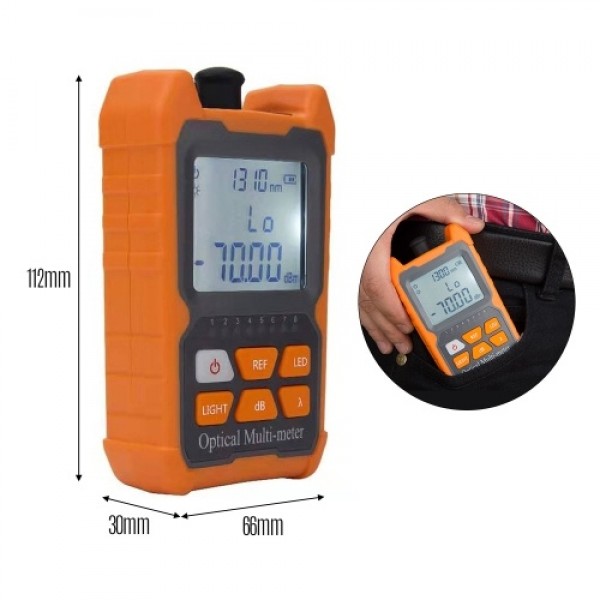

Item size: 112 * 66 * 30mm / 4.41 * 2.6 * 1.18in
Package size: 112 * 66 * 30mm / 4.41 * 2.6 * 1.18in
Package weight: 150g / 5.29ounces
Note:
1.Due to the different display screen and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow a little measuring deviation due to manual measurement.
3.The network test remote tool in the picture is not included in the product.
Package List:
1 * Cable Tester
1 * Black String
1 * User Manual
